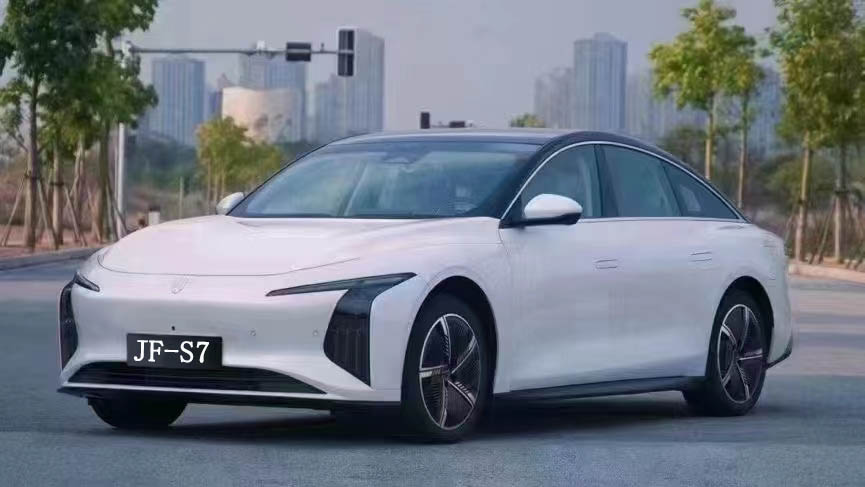

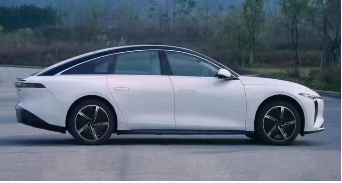

JF-S7 EV sedan

JF-S7

JF-S7
Price:Contact Us cc_junfeng@163.com

BrandDongfeng
ClassificationBattery electric new energy vehicle
Body dimension (mm)4935*1915*1495
Wheelbase (mm)2915
Body structure 5-door 5-seater hatchback
Mileage (km)540KM
Type of batteryLithium iron phosphate battery
Motor Power(KW)0
Battery Capacity(KWh)57
Charging period0.43h
Highest Driving Speed165
Acceleration Time(s)6.67
Driving motor locatioRear
Volume of trunk541-1303
Type of transmission电动车单速变速箱
Curb weight 1730KG
Warranty of vehicle
Manufacturer
车型名称 Model Name JF-S7 Luxury JF-S7 Exclusive
厂家型号 Manufacturer Model S50EVKL540FB25SH24C S50EVKL540FB25SZ24C
车身颜色 Body colour 星辰白，星耀黑，松石绿，烟雨蓝，玛瑙红，碧玉青
Star white,Astral black,Viridis,Misty blue,Agate red, Jade green
内饰颜色 Interior colour White, Black
续航 Driven mileage CLTC 540km 540km
电动机 MOTOR 驱动形式 Driven type 后置后驱
RR 		后置后驱
RR
电动机类型 Type of motor 永磁同步电机
Permanent magnet synchronous motor 		永磁同步电机
Permanent magnet synchronous motor
冷却型式 Cooling type 液冷 Liquid 液冷 Liquid
峰值功率(kW) peak power (kW) 160 160
额定功率(kW) power rating (kW) 56 56
电机最高转速（rpm) Maximum motor speed (rpm) 16000 16000
峰值扭矩(N.m) Peak Torque (N.m) 310 310
主减速比 Main deceleration ratio 12.293 12.293
制动能量回收系统 Brake energy recovery system ● ●
多级能量回收系统 Multistage energy recovery system ● ●
电池
BATTERY 		动力电池材料 Power battery materials 磷酸铁锂 LFP 磷酸铁锂 LFP
冷却型式 Cooling type 液冷 Liquid 液冷 Liquid
电池加热装置 Battery heating device ● ●
电池容量(kwh) Battery capacity (kwh) 56.8 56.8
充放电
CHARGING 		车载充电器功率 Car-charger power 6.6KW 6.6KW
慢充充电接口（交流） Slow charging interface (AC) ● ●
快充充电接口（直流） Fast charging interface (DC) ●国标
Chinese standard 		●国标
Chinese standard
充电接口照明灯 Charging interface lighting lamp × ×
充电接口带锁 Charging interface with lock ●国标
Chinese standard 		●国标
Chinese standard
预约充电功能 Allocate the charging function ● ●
慢充充电时间(仪表电量从0%～100%) Slow charging time (instrument power range from 0% to 100%) 6.6kW充电桩约9小时(常温RT)
6.6kW charging pile approx. 9 hours (room temperature) 		6.6kW充电桩约9小时(常温RT)
6.6kW charging pile approx. 9 hours (room temperature)
快充充电时间(SOC 30%～80%) Fast-charging time (SOC 30%~80%) 常温25℃：120kW充电桩28min
Room temperature 25℃ : 120kW charging pile-28min 		常温25℃：120kW充电桩28min
Room temperature 25℃ : 120kW charging pile-28min
放电功能 Discharge function 3.3KW ● ●
变速箱
TRANSMISSION 		变速器类型 Transmission type 单速固定速比
Single speed fixed speed ratio 		单速固定速比
Single speed fixed speed ratio
档位个数 Number of gear 怀挡 paddle shift P/R/N/D P/R/N/D
车身
VEHICLE BODY 		车身结构 bodywork 承载式车身，三厢车 frameless body saloon ● ●
车门数(个) Number of doors (one) 4 ● ●
座位数(个) Number of seats (individual) 5 ● ●
底盘
CHASISS 		前悬挂类型 Front suspension type 麦弗逊式独立悬挂+横向稳定杆 McPherson type independent suspension + lateral stabilizer bar ● ●
后悬挂类型 Rear suspension type 多连杆式独立悬挂 Multi-link-type independent suspension ● ●
空气悬挂 air suspension × ×
可调悬挂 Adjustable suspension × ×
转向传动装置 steering transmission linkage 电动转向，运动模式转向变沉 Electric steering, motion mode steering changes to heavy ● ●
前轮制动器 Front wheel brake 通风盘式 Ventilation disc ● ●
后轮制动器 rear wheel brake 盘式 disk ● ●
驻车制动类型 Parking brake type EPB EPB ● ●
轮胎规格 tyre size 235/50R18（带 E-mark） 235 / 50R18 (with E-mark) ● ×
235/45R19（带 E-mark） 235 / 45R19 (with E-mark) × ●
备胎 Spare tire × ×
快速补胎工具 Quick tire replacement tools ● ●
安全性配备
Safety Configuration 		驾驶座安全气囊 The driver's seat airbag ● ●
副驾驶安全气囊 Passenger airbag ● ●
前排头部气帘 Front head curtain ● ●
后排头部气帘 The rear head air curtain ● ●
前排侧气囊 Front side air bag ● ●
后排侧气囊 The rear side air bag × ×
前排膝部气囊 Front knee airbags × ×
主驾安全带未系蜂鸣报警或指示灯 The main driving seat belt is not fitted with a beep alarm or indicator light ● ●
副驾安全带未系蜂鸣报警提示 The passenger seat belt is not wearing a buzzing alarm warning ● ●
后排安全带未系报警提示 The rear seat belt is not an alarm ● ●
前排安全带预收紧功能 Front seat belt advance tightening function × ●
前排安全带限力功能 Front seat belt force limit function ● ●
后排安全带预收紧功能 Rear seat belt pre-tightening function × ×
后排安全带限力功能 Rear seat belt force limiting function × ×
前排安全带高位调节器 Front seat belt high seat regulator × ×
电子防盗 Electronic anti-theft ● ●
车内中控锁 Central control lock in the car ● ●
自动落锁 Automatic lock ● ●
碰撞后自动解锁 Unlock it automatically after the collision ● ●
儿童安全门锁 Child safety door lock ● ●
车门锁芯 Door lock core ● ●
ABS防抱死 ABS ● ●
制动力分配(EBD/CBD) Braking force Distribution (EBD / CBD) ● ●
制动优先 Brake first ● ●
制动辅助(HBA/EBA/BA等) Brake Assist (HBA / EBA / BA, etc.) ● ●
牵引力控制(ASR/TCS/TRC等) Traction control (ASR / TCS / TRC, etc.) ● ●
车身稳定控制(ESP/DSC/VSC等) Body stability control (ESP / DS C/VSC, etc.) ● ●
上坡辅助 uphill assist ● ●
陡坡缓降 The steep slope slow down ● ●
自动驻车 Automatic parking ● ●
胎压监测装置 Tire pressure monitoring device 间接式（报警） pressure alarm × ×
直接式（显示） pressure display ●（欧标）
EU standard 		●（欧标）
EU standard
零胎压继续行驶 Zero tire pressure to driving × ×
可溃缩转向管柱 The steering string can collapse ● ●
ISO FIX儿童座椅固定装置 ISO FIX Child seat fixture 后排两个 Two rear rows ● ●
车内生命体征监测系统 In-car vital signs monitoring system × ×
高位刹车灯 High brake light LED（带 E-mark） LED (with E-mark) ● ●
疲劳监测/提醒 Fatigue monitoring / reminders × ×
前泊车雷达 Front parking radar ● ●
倒车雷达 PDCParking Distance Control ● ●
倒车影像 Reverse image 标清 SD image × ×
高清 HD ● ●
360度全景环视系统 A 360-degree panorama looks around the system 高清，转向辅助影像 HD, steering to auxiliary images ● ●
智能驾驶辅助
Intelligent Driving Assistance 		智能辅助驾驶 Intelligent assisted driving 高速公路NOA领航系统 Highway NOA pilot system × ×
自动泊车 Automatic parking × ×
循迹倒车 Following reverse × ×
遥控泊车 Remote parking × ×
驾驶员面部识别系统 Driver's facial recognition system × ×
智能远光灯控制IHC Adaptive far and near light lamp × ×
ACC自适应巡航 The ACC adaptive cruise × ●
LKA车道保持功能 The LKA lane-keeping function × ×
AEB主动刹车 The AEB is active braking × ●
TJA交通拥堵辅助功能 TJA traffic congestion assist function × ×
TSR交通标志识别 Traffic sign identification × ×
FCW前碰撞预警功能 The FCW front collision warning function × ●
LDW车道偏离提醒 LDW lane departure reminder × ●
BSD盲区监测 BSD blind zone monitoring × ●
LCA变道辅助 The LCA lane change assist × ●
RCW后碰撞预警功能 The RCW rear collision warning function × ●
RCTA倒车侧向警告 RCTA reverse side warning × ●
DOW开门预警功能 DOW open door warning function × ●
MOD移动物体&行人探测预警系统 MOD Moving Object & pedestrian Detection Warning system × ×
操纵性配置
Driving Configuration 		方向盘材质 Steering wheel material 超纤皮
microfiber leather 		● ●
多功能方向盘 Multi-functional steering wheel ● ●
方向盘音响控制 Steering wheel sound control ● ●
方向盘仪表控制 Steering wheel instrument control ● ●
方向盘语音控制 Steering wheel voice control × ×
方向盘ADAS功能控制 Steering wheel ADAS function control × ●
方向盘上下调节 Steering wheel is adjusted up and down ● ●
方向盘前后调节 Steering wheel front and rear adjustment ● ●
方向盘电动调节 Steering wheel electric adjustment × ×
方向盘加热功能 Steering wheel heating function × ×
换挡手柄 Shift gear handle 怀挡 paddle shift ● ●
电子换挡 Electronic shift ● ●
定速巡航 Cruise at fixed speed × ×
驾驶模式 Driving mode 经济、标准、运动、运动+
Economy, standards, sports, sports + 		经济、标准、运动、运动+
Economy, standards, sports, sports +
舒适性配置
Comfort Configuration 		前空调 Front air conditioning 非热泵 Non-heat pump × ×
热泵技术 Heat pump technology ● ●
前空调控制 Front air conditioning control 电动调节 electrical control × ×
单区自动恒温 Single zone automatic constant temperature ● ●
前出风口 Front outlet ● ●
后空调 Rear air conditioning × ×
后排出风口 The rear air outlet ● ●
环保抑菌材料 Environmental antibacterial materials ● ●
全景天幕 Panoramic sky curtain ● ●
主动降噪 active noise reduction × ×
便利性配备
Convenience Configuration 		机械钥匙 Mechanical key ● ●
遥控折叠钥匙 Remote control folding key × ×
智能钥匙 Smart key ● ●
蓝牙钥匙 Bluetooth key × ×
NFC钥匙 NFC key × ×
一键启动系统 One-click startup system × ×
无感启动 Non-inductive start ● ●
无钥匙进入系统 Keyless entry into the system 感应式 induction type ● ●
前窗雨刷 Front window wiper 有骨雨刷 There is a bone wiper × ×
无骨雨刷 Bone-free wiper ● ●
感应雨刷 Induction wiper × ●
间歇式可调式雨刷拨杆 Intermittent adjustable type wiper dial lever ● ×
灵敏度可调式雨刮 Sensitivity adjustable type wiper × ●
前挡风除霜/除雾 Front windshield defrost / defogging ● ●
后雨刷 After the wiper × ×
后窗加热线 Rear window heating line ● ●
后视镜电动调节 Mirror electric adjustment ● ●
后视镜加热 Rear view mirror heating ● ●
后视镜锁车自动折叠 The rearview mirror locks the car automatically ● ●
外后视镜记忆 External rearview mirror memory × ×
外后视镜倒车记忆辅助 External rearview mirror reversing memory assistance × ×
电子外后视镜 Electronic exterior rearview mirror × ×
内后视镜防眩目 Anti-glare Inner rearview mirror ● ●
前电动车窗 Front electric window ● ●
后电动车窗 The rear electric window ● ●
车窗防夹手功能 Window anti-clamp hand function 四门 Four doors ● ●
一键升窗/关窗 One-key window raising / window closing 四门 Four doors ● ●
遥控车窗启闭 Remote control window opening and closing ● ●
下雨自动关窗 It rains and automatically closes the window 车辆静止时 Vehicle Stationary × ●
手机充电接口 Mobile phone charging interface 2个USB 2 USB ● ●
12V电源接口 The 12V power supply interface 前排一个 A front row ● ●
220V电源接口 The 220V power supply interface × ×
手机无线充电 Mobile phone wireless charging 前排一个，50W front, 50W ● ●
车门内开把手 Open your hands inside the door ● ●
车载冰箱 car refrigerator × ×
无边框车门 Boundless door ● ●
电动吸合门 Electric suction door × ×
尾门 The tail door 掀背式 Hatchback type ● ●
电动尾门 Electric tail door ● ●
感应尾门 Induction tail door × ×
灯光
Lighting 		前大灯 head lighting LED ● ●
前后组合灯动态迎宾功能 Front and rear combination light with dynamic welcome function 呼吸效果 Breathing effect ● ×
动态灯语，三种动态效果 Dynamic light language, three dynamic effects × ●
自动点亮 Automatic lighting ● ●
转向辅助灯 Steering auxiliary light × ×
流水转向灯灯 Water turn signal lamp 前转向灯+后转向灯 Front turn signal light + rear turn signal light × ●
LED日间行车灯 LED daytime running lights 带 E-mark belt E-mark ● ●
前灯装饰灯 Headlight decorative lights 狮爪灯 Lion claw lamp × ●
前logo灯 Front logo lights × ×
前大灯延时关闭 The headlights is turned off ● ●
大灯高度可调 Headlight height adjustable 电动调节 electrical control ● ●
前雾灯 Front fog lamp 带 E-mark belt E-mark × ×
后组合灯 Rear combination light 双倒车灯，带 E-mark，不带FORTHING LOGO Double reverse lights, with E-mark, and no FORTHING LOGO ● ●
外后视镜迎宾灯 External rearview mirror welcome light 照地迎宾灯 Welcome lights on the ground × ×
车内氛围灯 In-car atmosphere light 单色 black and white × ●
室内灯延迟熄灭 The indoor light out late ● ●
前厢灯 Front car lights ● ●
中厢灯 Mid-box lamp × ×
侧厢灯 Side car lamp ● ●
手套箱灯 Glove box lamp × ×
车门门灯 Door door lights × ×
后备厢开启自动照明灯 Open the automatic lighting light in the trunk ● ●
尾门牌照灯 Tail door license plate lamp 带E-MARK标识 With the E-MARK identification form ● ●
隐藏式门把手 Hidden door handle ● ●
底盘下护板 Protection plate under the chassis 前部下护板 Front subordinates guard the board ● ●
机舱下部挡泥板 Lower cabin fender ● ●
机罩气撑杆 Machine hood gas support rod ● ●
铝合金轮毂 Aluminum alloy hub ● ●
前/后轮挡泥罩 Front / rear wheel shield ● ●
前/后轮挡泥板 Front / rear wheel fenders × ×
后尾翼 The rear tail wing 固定式小尾翼 Fixed small tail wing × ×
迎宾踏板 Welcome pedal × ×
后三角窗 The back triangle window 灰玻，带 E-mark Gray glass, with an E-mark × ●
运动大包围 Sports surrounded by × ×
侧裙边 Side skirt ● ●
同色防擦条 The same color anti-wipe bar × ×
天线 antenna ● ●

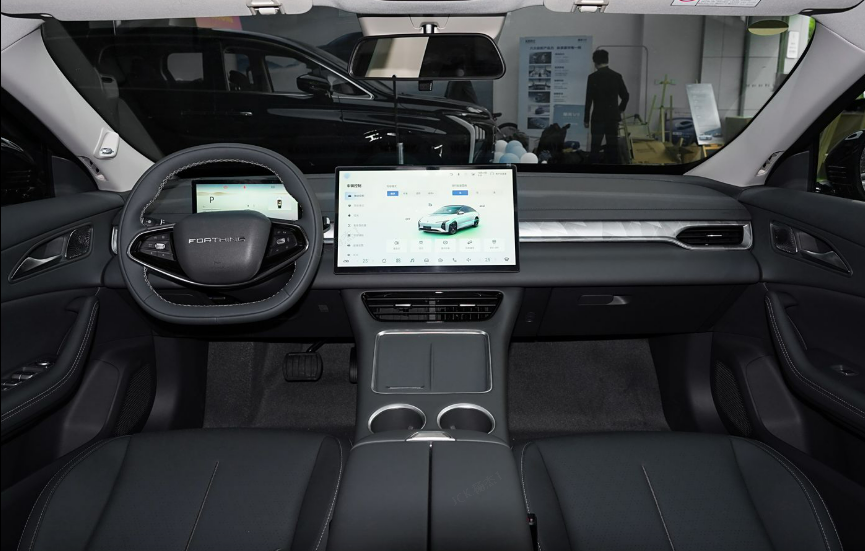

内部配置
Interior Configuration 		内饰 trim 全包覆，软质为主 Full coating, mainly soft quality ● ●
内饰颜色 Interior color 浅色内饰 Light color interior ○ ○
深色内饰 Dark interior ● ●
驾驶员座遮阳板 Driver's seat sun visor 无灯带化妆镜 No light with makeup mirror ● ×
带灯带化妆镜 Wear light and makeup mirror × ●
副驾驶座遮阳板 Passenger seat visor 无灯带化妆镜 No light with makeup mirror ● ×
带灯带化妆镜 Wear light and makeup mirror × ●
地毯 carpet 针刺地毯 Needle carpet ● ●
左脚休息踏板 Left foot rest pedal ● ●
多媒体
Multi-media 		USB外接音源接口 USB external audio source interface 集成在前排USB口 Integrated in the front-row USB port ● ●
收音功能 Sound listening function FM/AM FM/AM ●（DAB RDS） ●（DAB RDS）
音频播放 Audio play ● ●
视频播放 Video play ● ●
行车记录仪 tachograph × ×
WIFI功能 WIFI function ● ●
蓝牙系统 Bluetooth system ● ●
组合仪表 Combination instrument 全液晶组合仪表，≥8.8英寸 Full LCD combination instrument, 8.8 in ●（英西意德法俄阿波斯）
(English, Spanish, Italian, German, French, Russian, Arabic, Farsi) 		●（英西意德法俄阿波斯）
(English, Spanish, Italian, German, French, Russian, Arabic, Farsi)
中控台显示屏 Center console display 14.6英寸 14.6 Inch ●（英西意德法俄阿波斯）
(English, Spanish, Italian, German, French, Russian, Arabic, Farsi) 		●（英西意德法俄阿波斯）
(English, Spanish, Italian, German, French, Russian, Arabic, Farsi)
副驾显示屏 The passenger display × ×
扬声器数量 Number of speakers 4个 Four × ×
6个 Six ● ×
8个 Eight × ●
模拟声浪 Simulation of sound waves × ×
地图导航 Map navigation × ×
手机互联/投屏 Mobile phone interconnection / screen projection 手机无线投屏 Mobile phone wireless screen ●（CARPLAY、安卓AUTO） ●（CARPLAY、安卓AUTO）
座椅
Seats 		座椅面料 Seat fabric 仿皮 imitation leather ● ●
主驾座椅 Driver seat 6向手动调节 6-way manual adjustment × ×
6向电动调节 6-way electric adjustment ● ●
电动座椅记忆（带迎宾滑动） Electric seat memory (with welcome sliding) ● ●
座椅通风 Seat ventilation ● ●
座椅加热 Seat heating ● ●
座椅按摩 Seat massage × ×
座椅靠背置物袋 Seat back placement bag ● ●
副驾座椅 Passenger seat 4向手动调节 4-way manual adjustment ● ×
4向电动调节 4-way electric adjustment × ●
座椅通风 Seat ventilation × ×
座椅加热 Seat heating × ●
座椅按摩 Seat massage × ×
座椅靠背置物袋 Seat back placement bag ● ●
后排座椅 Back seats 座椅通风 Seat ventilation × ×
座椅加热 Seat heating × ×
座椅按摩 Seat massage × ×
座椅靠背整体放倒 Seat back overall down ● ●
座椅靠背角度可调 Seat-back angle is adjustable × ×
座椅靠背电动调节 Seat-back electric adjustment × ×
座椅中央扶手 Central armrest of seat × ×
中央扶手带杯托 Central armrest with a cup holder × ×
扶手置物盒 Armrest box × ×

    Driving TestInvot
